Mobile water curtain cabinet cold air unit, is a new structural form of cooling system, it integrates a large area of wet curtain and low speed and large air volume negative pressure fan as one, high evaporation efficiency, good cooling effect, large cove
1.5kw
Max Power
Noise
20m
Wind Distance
350L
Water Storage
45000m³/min
Air Volume
Introduction
Parameters
Video

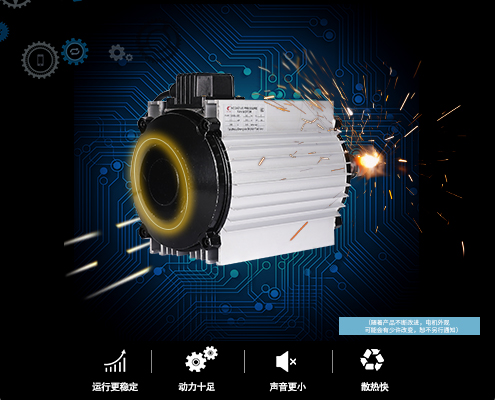

◆ Three-phase single-speed motor, full power, strong cast iron shell, low temperature rise, good sealing, stable anti-corrosion and waterproof performance, long service life
◆ The fuselage shell is made of stainless steel plate, the plate contact point is full of welding welding sealing, polished and polished, the appearance is beautiful, and it is not easy to rust and have a longer service life
◆ High strength large diameter new twisted disposable stamping molding large air volume silent boneless fan blade, toughness, beautiful and durable, not easy to deform, not easy to break
◆ Large area 3-sided encrypted evaporation cooling wet curtain, this wet curtain paper for Jiamusi pulp paper mildew resistance, strong water absorption, uniform penetration, rapid diffusion, not easy to fly water evaporation efficiency is high, cooling effect is more significant
◆ The outside of the host is equipped with multiple high-quality nylon dustproof filter screens to effectively filter dust cleaning, which is more convenient for reusable cleaning and environmental protection.
◆ Large LED screen, simple operation, beautiful and generous, the working status of the equipment at a glance fault code display, failure quickly handled
◆150㎡ large area cooling, about 1 kWh of electricity per hour
◆ The water pump has its own filtration system, which effectively filters the impurities in the water, the strong power water flow is smooth, the water supply is uniform, the design is simple, the disassembly and cleaning is convenient to cooperate with the water level control system, and the water shortage alarm is available
◆ Intelligent control of drainage cleaning, one key to get it done, cleaning thoroughly, more worry-free
| 型號 Model | 循環風量（m3/h） air volume | 電壓 voltage | 功率 windpressure | 噪音 noise | 儲水量（L） Water tank cacapacity | 耗水量（L/h） water consumption | 送風距離 air supply distance | 適用面積（㎡） Applicable area | 凈重 net weight |
|---|---|---|---|---|---|---|---|---|---|
| KC-450ADLS-BSY | 45000~47000 | 380 | 1.5 | ≤73 | 370L | 90~120 | 15~20 | 150~200 | 230kg |
| KC-400ADLS-BSY | 40000~42000 | 380 | 1.1 | ≤68 | 350L | 60~120 | 15~18 | 130~180 | 215kg |
| KC-350ADLS-BSY | 35000~37000 | 380 | 0.75 | ≤65 | 300L | 40~95 | 12~15 | 120~150 | 190kg |
| KC-250ADLS-BSY | 25000~27000 | 380 | 0.55 | ≤58 | 270L | 20~55 | 6~12 | 80~120 | 175kg |
| 型號 | 風口尺寸 Tuyere size | 外形尺寸 Tuyere size Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|
| (Model) | A | A1 | W | B1 | B2 | B3 | B4 | L | H |
KC-450ADLS-BSY | 1350mm | 1350mm | 1300mm | 1369mm | 260mm | 130mm | 900mm | 1600mm | 1880mm |
KC-400ADLS-BSY | 1250mm | 1300mm | 1300mm | 1250mm | 260mm | 130mm | 900mm | 1500mm | 1780mm |
KC-350ADLS-BSY | 1100mm | 1150mm | 1300mm | 1250mm | 260mm | 130mm | 900mm | 1400mm | 1670mm |
| KC-250ADLS-BSY | 930mm | 1000mm | 950mm | 1180mm | 260mm | 130mm | 900mm | 1300mm | 1570mm |
